- AC Motor: 450 kW
- Max. speed: 3500 rpm
- Three inertia flywheels in free combination: 30-60-120 kgm2
- Inertia range (at 1 g): 5-400 kgm2
- Max. braking moment: 10.000 Nm
- Max. pressure: 200 bar
- Max. ventilation 5000 m3/h
- Climatic chamber – ECU (Environment Control Unit)
- DTV (Disc Thickness Variation)
- NVH (Noise Vibration Harshness)
- Ventilation system for racing sector
- Oil absorption measurement
- Residual torque system
- Static friction analysis
- Water Sprinkling System
- Handbrake actuator
- EPB Trolley (electric parking brake)
- Piastrone millefori
- Joint
- Videocamera
TC 225

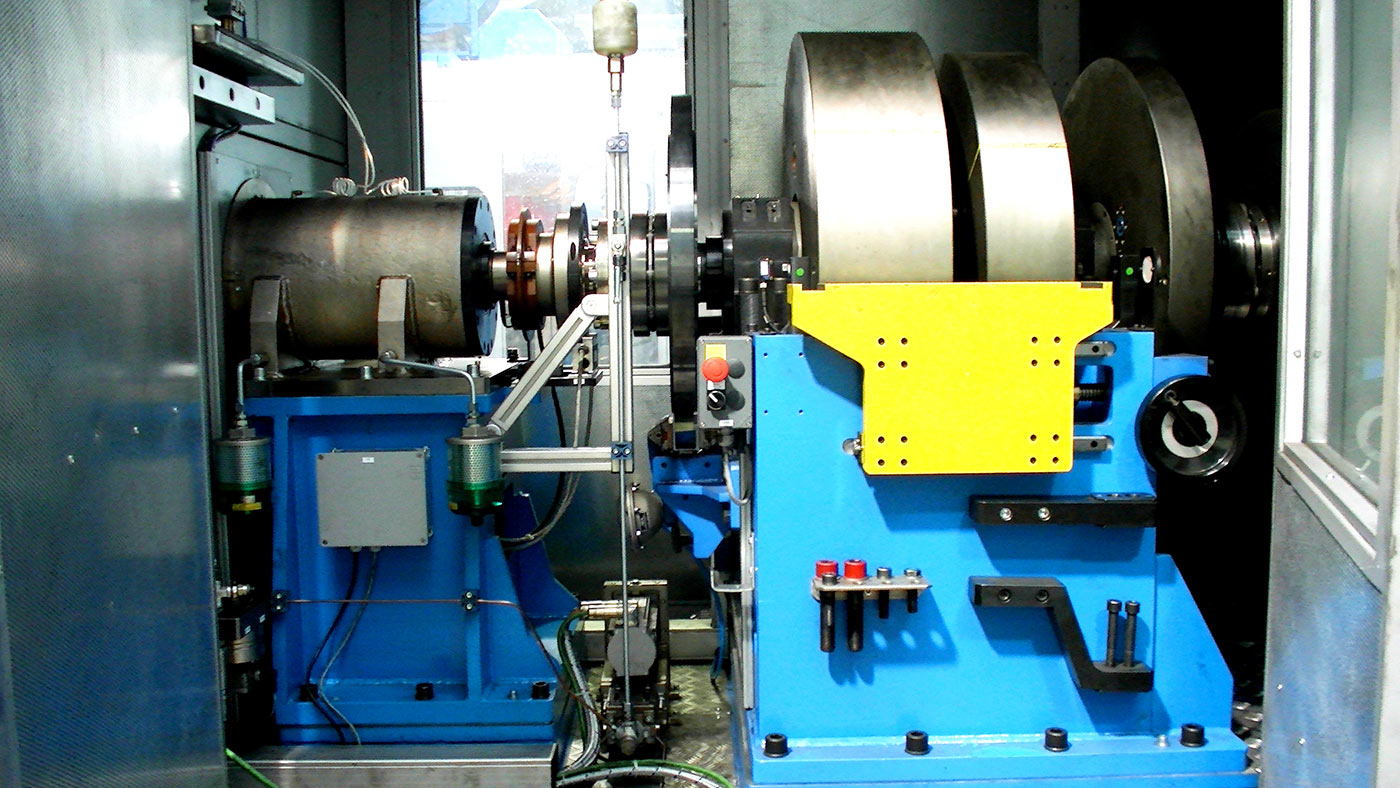

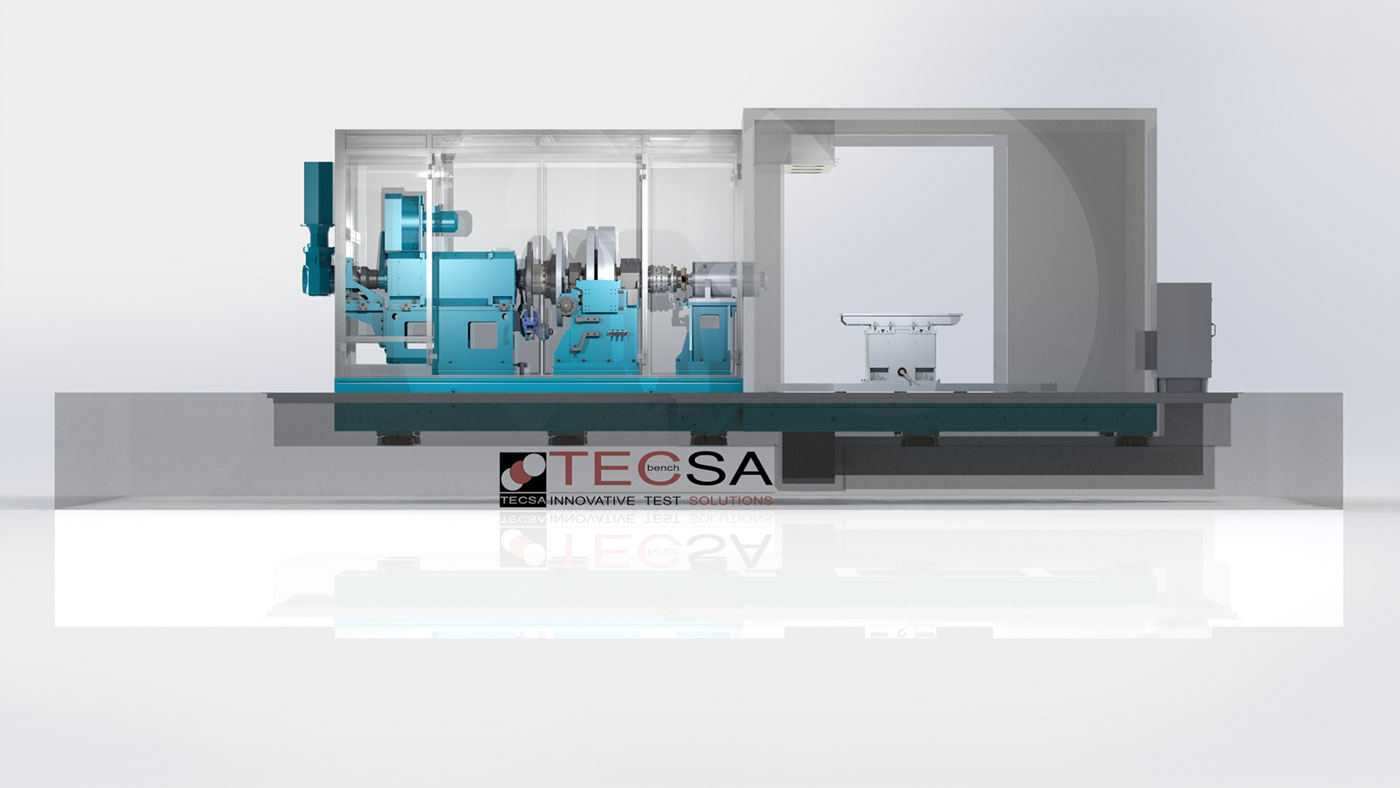

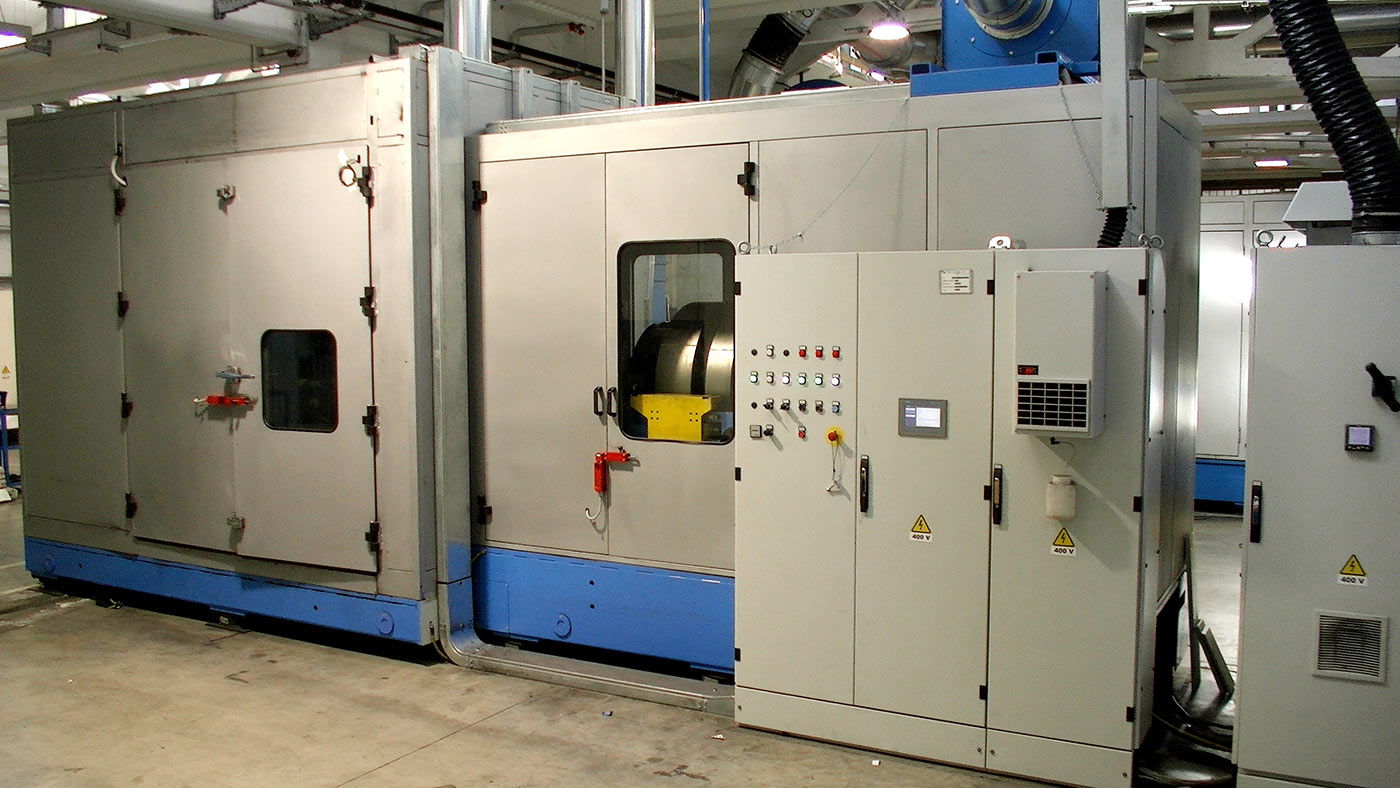

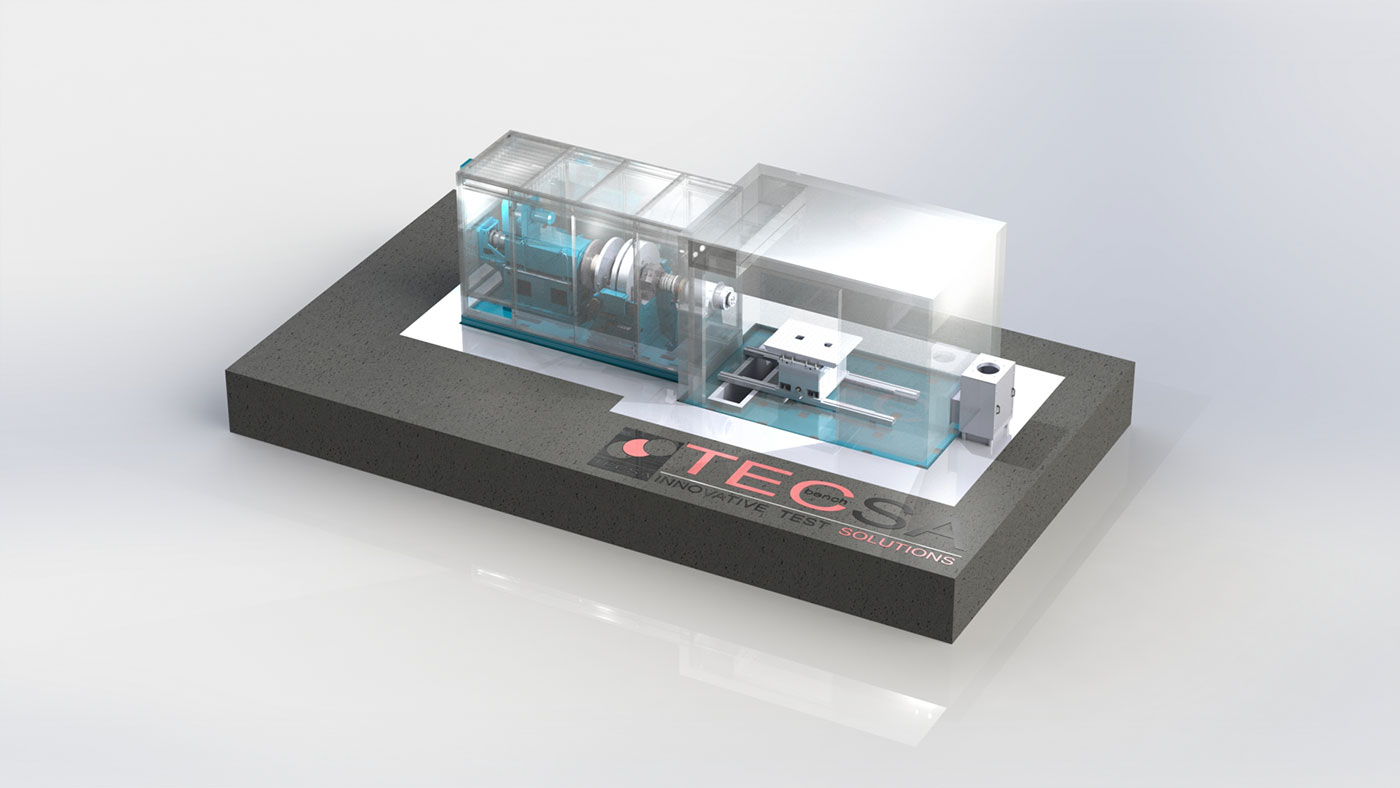

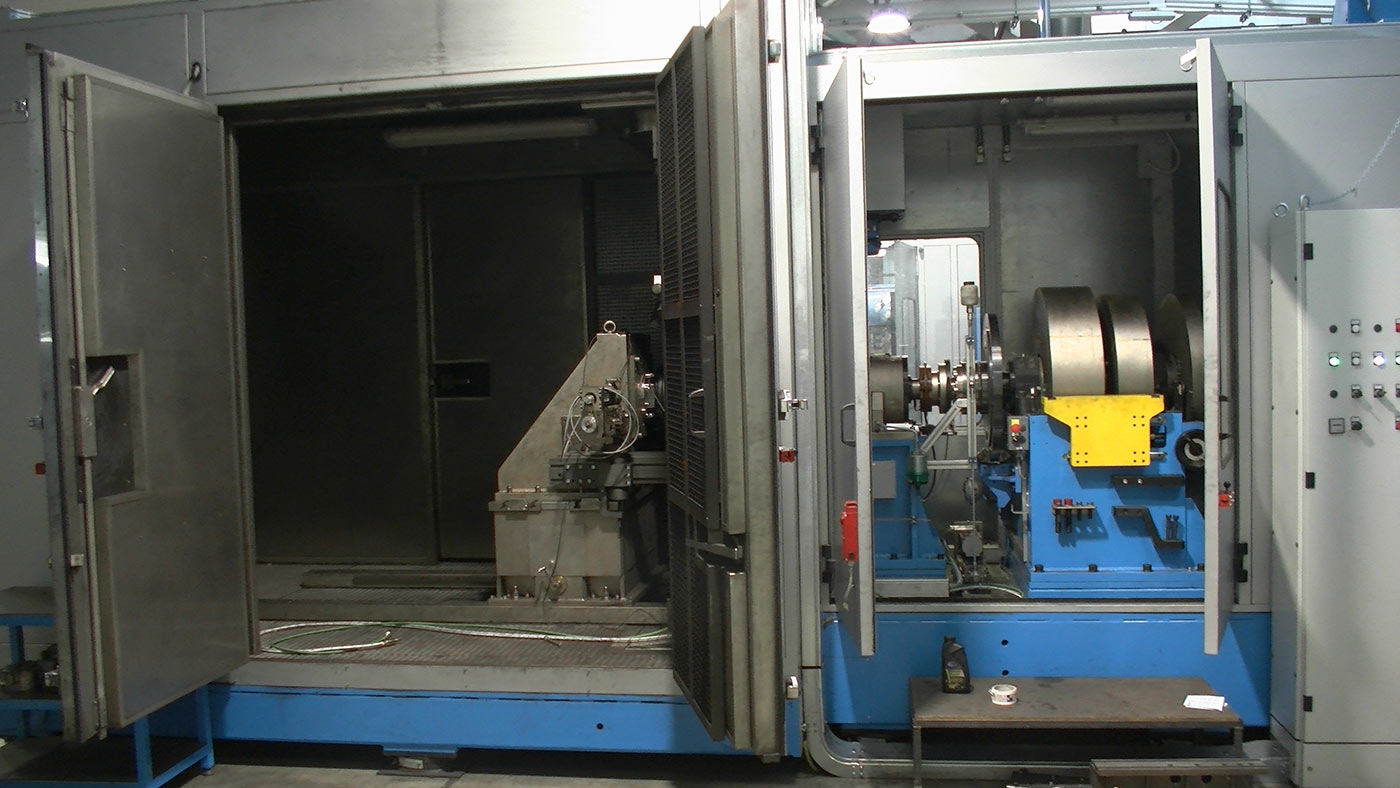

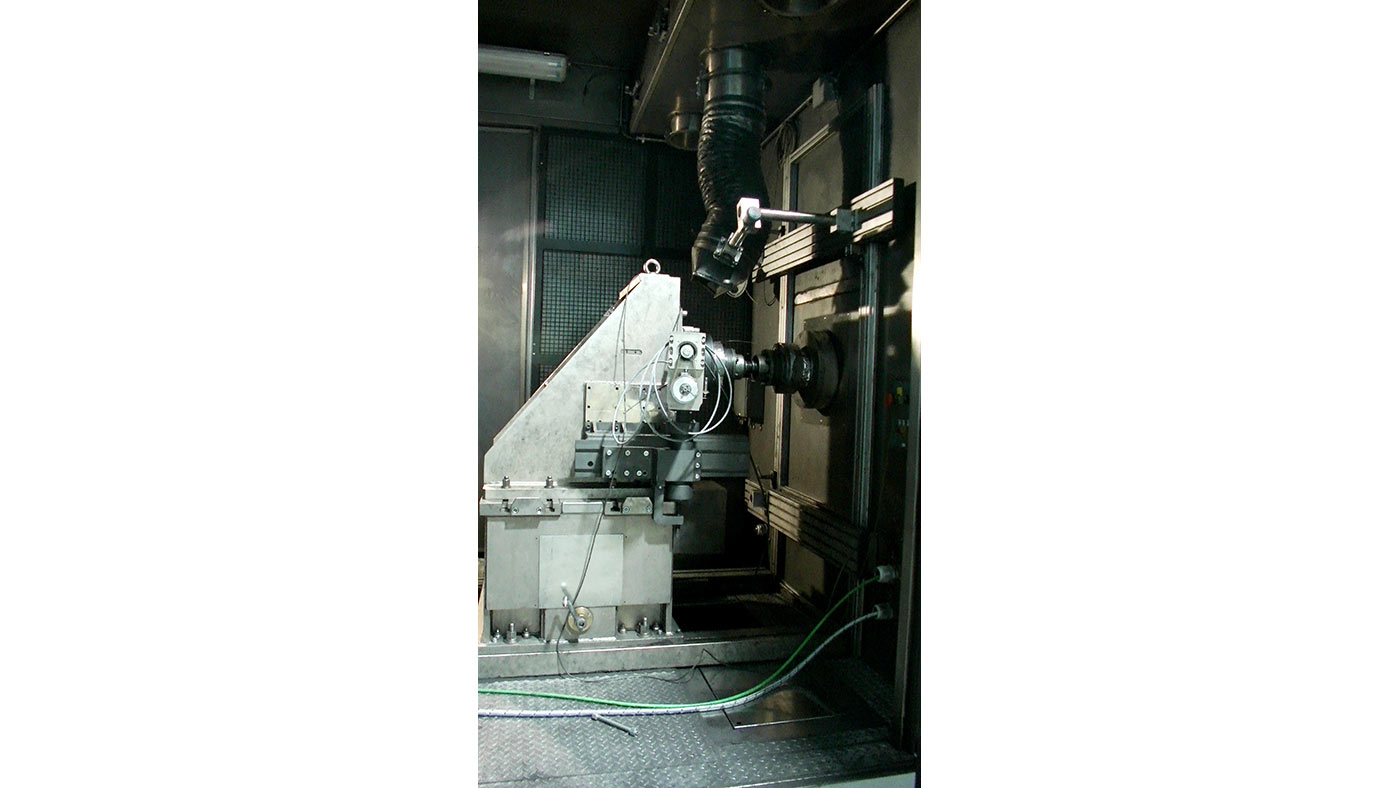

Dynamometer bench with three flywheels
- Reference test machine for high performance cars: electric and hybrid vehicles, high speeds and high accelerations/decelerations, huge mass
- Performance tests, from motorcycles to high performance cars and racing
- NVH tests
- R&D: dust analysis, residual torque
